Gold Bond® EVOLVE XP™ Fire-Shield® Gypsum Board

Up to 20% lighter than 5/8" XP® Fire-Shield® Gypsum Board with lower environmental impact

Resources

3-Part Guide Specs

Literature

SDS

Submittals

Heighten performance. Lower environmental impact. Improved mold and moisture resistance.

Engineered to conserve water, reduce energy, and lower carbon emissions.

  • Up to 20% lighter than 5/8” XP® Fire-Shield® Gypsum Board.
  • Mold and moisture resistant, use anywhere moisture is a concern.
  • Type X core is fire resistant and an approved component in specific UL fire-rated designs.

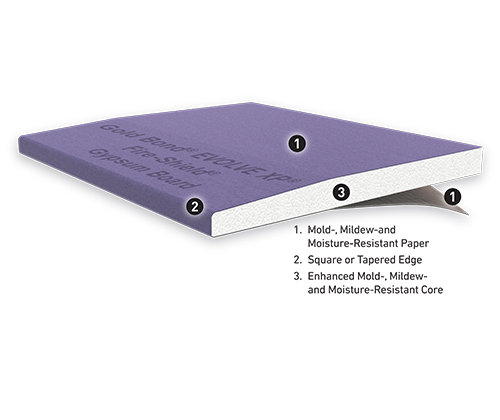

Gold Bond® EVOLVE XP™ Fire-Shield® Gypsum Board consists of a mold-, mildew-, moisture- and fire-resistant gypsum core specially formulated to be up to 20% lighter than 5/8" XP® Fire-Shield® Gypsum Board and is encased in specially designed PURPLE® paper. The heavy PURPLE face paper and the gray back paper are 100% recycled and are resistant to mold, mildew and moisture.

EVOLVE XP consists of a fire-resistant, Type X gypsum core to provide additional fire-resistance ratings when used in tested systems.

GridMarX® are printed on the paper surface to help installers instantly identify stud locations and make accurate cuts without having to pencil in or snap chalk lines.

The EVOLVE™ family of products focus on environmental impact by conserving water and reducing energy use during manufacturing, and lowering carbon emissions.

Check the Fire and Safety Information for a more complete explanation of how fire resistance ratings work.

APPLICATIONS:

  • For single- or multi-layer drywall construction for fire-tested assemblies.
  • Use it as a tile backer in dry areas or areas with limited moisture, such as toilet or sink areas, and wall and ceiling areas above tile in tubs and showers.
  • Can be used on ceilings

ADVANTAGES:

LOWER ENVIRONMENTAL IMPACT

  • Conserves water and reduces energy use during manufacturing, and lowers carbon emissions.

LIGHTWEIGHT

  • Up to 20% lighter than 5/8” XP Fire-Shield Gypsum Board
  • Lighter weight results in easier handling

INHIBITS MOLD GROWTH

  • Helps inhibit mold growth with the highest possible score on mold tests (ASTM D3273 and ASTM G21).
  • Features SPORGARD® technology with extra mold-inhibiting properties.
  • Has less than 5% water absorption per ASTM C473.

RESISTS MOISTURE BETTER

  • Fights the effects of moisture before damage can occur.
  • Dimensionally stable product with negligible expansion and contraction under normal atmospheric conditions.

PROVIDES ADDITIONAL FIRE RESISTANCE

  • Features a Type X core making it more fire resistant than ordinary wallboard.
  • Approved component in UL fire-rated designs.
  • UL Classified for fire resistance, surface burning characteristics and noncombustibility.
  • The gypsum core will not support combustion or transmit temperatures greatly in excess of 212°F (100°C) until completely calcined, a slow process.
  • UL Type FSLX requires the use of fiberglass insulation for single-layer, steel stud UL-rated wall assemblies.

FAST AND EASY TO INSTALL

  • Features GridMarX guide marks on the board to allow for faster and more accurate installation.
  • Save time and money with MaX 12® and MaX 16® optimized fastener patterns to achieve 1-hour fire ratings using fewer fasteners.
  • Scores and snaps easily, with no special handling requirements.
  • Lightweight, cost-efficient material that readily accepts a wide range of decorative finishes.

LOW-EMITTING MATERIALS

  • Qualifies as a low-VOC emitting material by meeting California Specification 01350.
  • Achieves UL GREENGUARD Gold Certification for low chemical emissions into indoor air during product usage. For more information, visit: ul.com/gg.

Availability

  • Northeast Area Only

Specifications

Products that suit any project criteria

Product Details

Performance:

Drywall Panels, Mold & Moisture Resistant, Lightweight Panels

Edge(s):

Tapered

Thickness(es):

5/8"

Width(s):

48"
